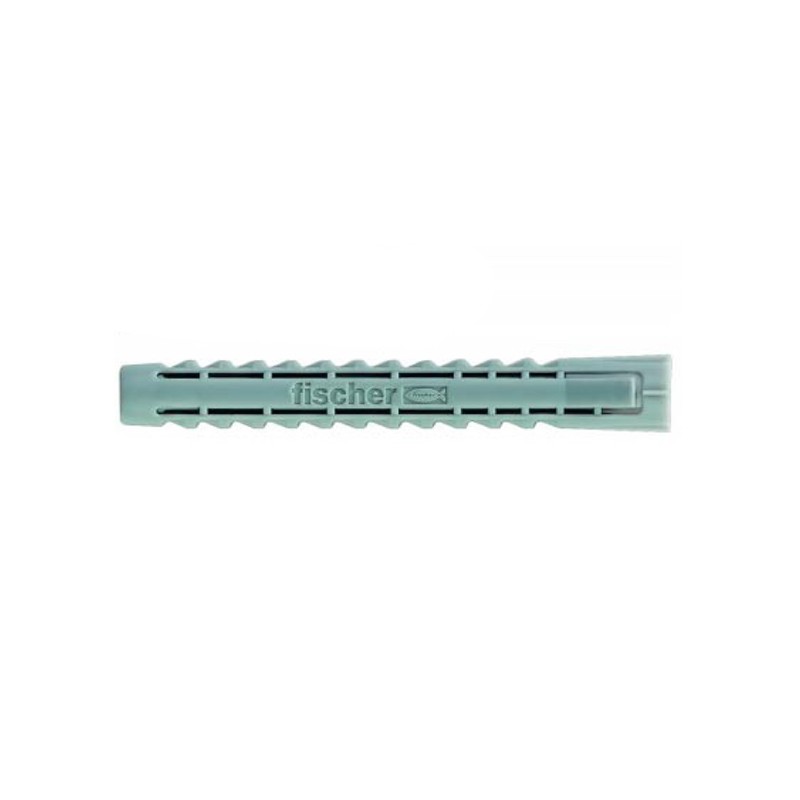

SX 10x80 plug
Product Code:
61-4029
Universal Nylon Plug SX L extended, suitable for all bases,
extending into four halves.
Selection of the wood screw according to the pin:
- Pin ø 4 mm - for wood screw ø 2-3 mm.
- Pin ø 5 mm for wood screw ø 3-4 mm.
- Pin ø 6 mm for wood screw ø 4-5 mm.
- Pin ø 8 mm - for wood screw ø 4,5-6 mm.
- Pin ø 10 mm for wood screw ø 6-8 mm.
- Pin ø 12 mm for wood screw ø 8-10 mm.
- Pin ø 14 mm for wood screw ø 10-12 mm.
- Pin ø 16 mm for wood screw ø 12 mm.
- The length of the wood screw should always be at least slightly longer than that of the dowel.
| Manufacturer: Fischer |
| Bortel: With kerb |
| Fastener length, mm: 80 |
| Purpose of the fastener: Concrete, Silicate bricks, Natural stone |
| Fastener diameter, mm: 10 |
| Fastener type: Pin |
Barcode:
4006209248294
