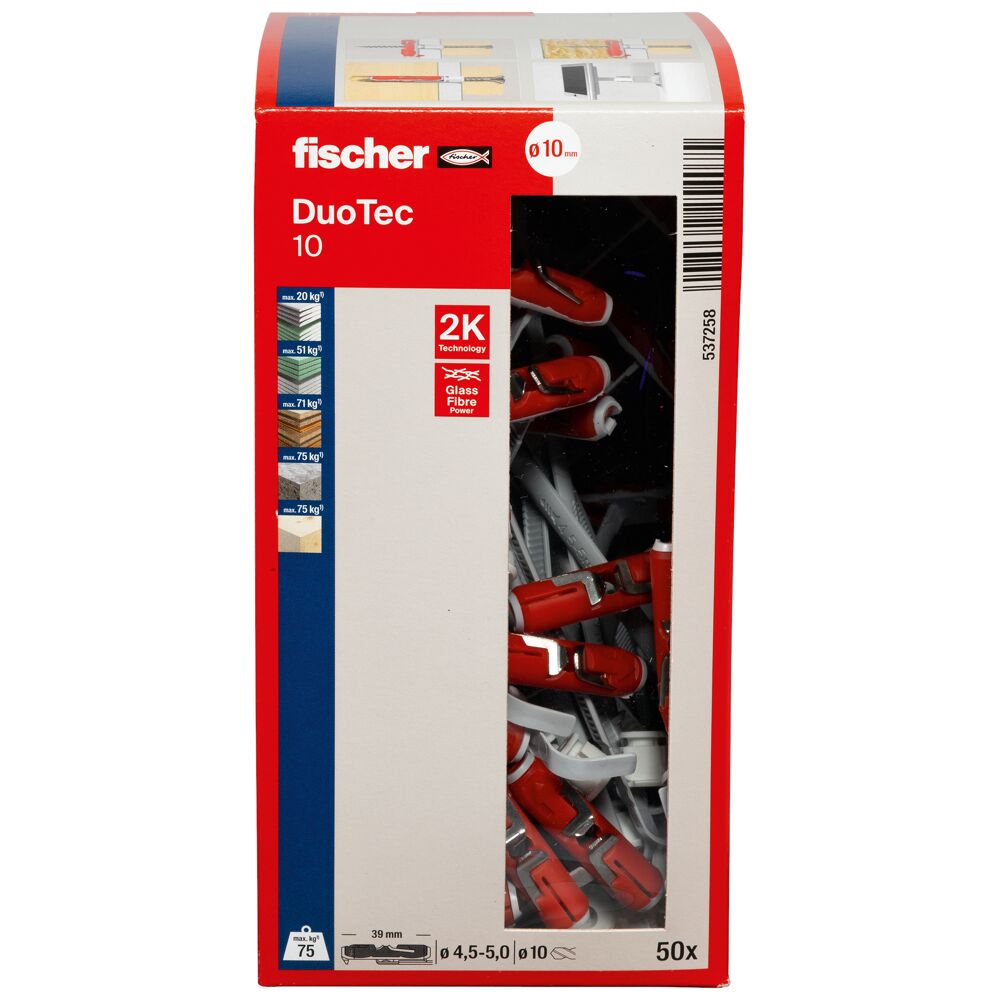

Fischer DuoTec 10 50 pcs.
Drywall pin DUOTEC. It is a member of the DUOPOWER family, made in the same way
according to 2K technology. The structure of this dowel consists of nylon and glass

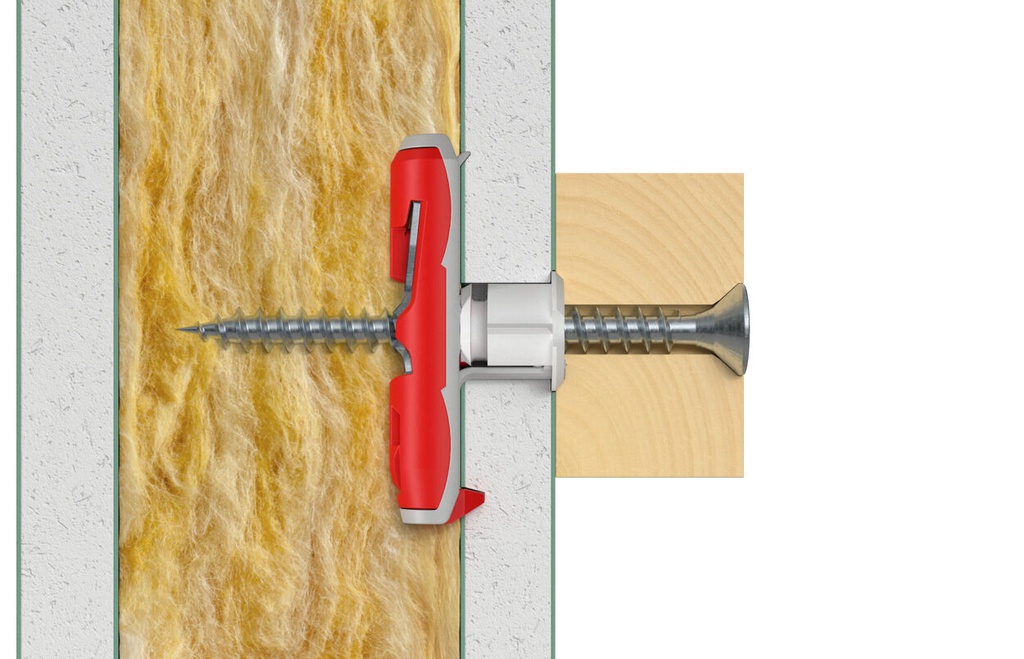

Fibre. This dowel is designed for installation behind various panels: drywall,
OSB, MPD, MDF, wooden panels, steel panels, plastic boards. Also

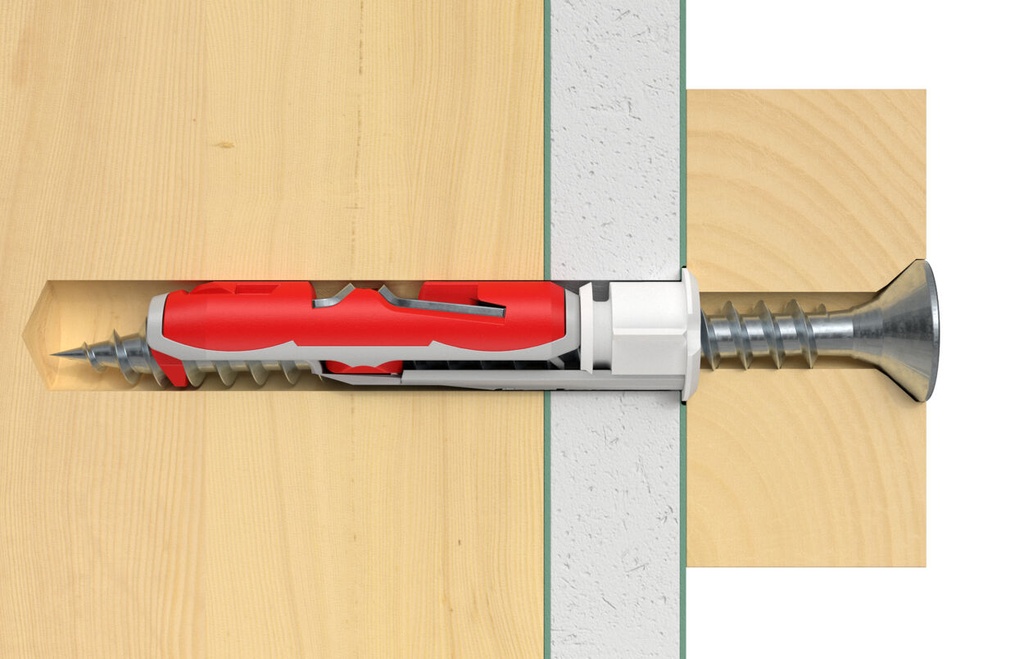

can be used for solids, as a simple expansion pin, for example,
for concrete or wood.
• Drill diameter 10 mm
• Min. panel thickness 9.5 mm
• Max. panel thickness 55 mm
• Min. cavity depth 40 mm
• Screw diameter 4.5 - 5.0 mm
• Screw length ≥ dp + tfix +20 mm
• Min. drill hole depth ls - tfix + 10 mm
• Min. screw length tfix + 55 mm
• Anchor length 50 mm
• Max. fixture thickness ls - 55 mm
• Amount 50 pcs.
| Manufacturer: Fischer |
| Diameter, mm: 10 |
| Bolt thickness: 4,5-5 mm. |
| Fastener type: Pin |
| Purpose of the fastener: Plasterboard panels |
| Units per pack, pcs.: 50 vnt. |
Barcode:
4048962254075
Unit of Measure Name:
pak50
