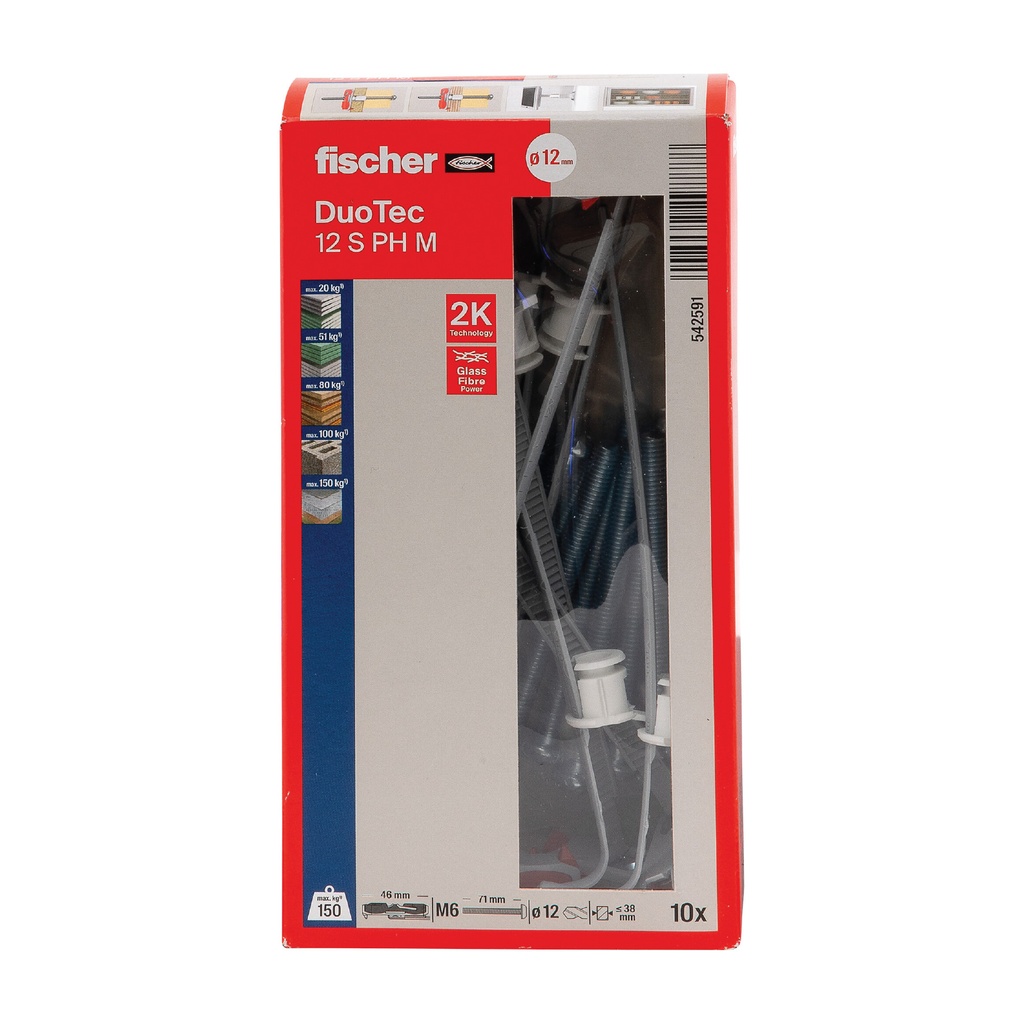

DUOTEC 12 S PH M TOGGLE FIXING

Plasterboard pin DUOTEC. It is a member of the DUOPOWER family, also made based on 2K technology. The structure of this dowel consists of nylon and glass fibre. This pin is designed for installation behind various boards: plasterboard, OSB, MPD, MDF, wooden panels, steel panels, plastic boards. Also, can be used for solid materials as a simple expansion pin, for example,
concrete or wood. This pin is easy to install and has a clamping track, which allows adjustment to the required distance, e.g,
single, double, triple drywall, glued panels etc. Distance track length: 100 mm. Pin length: 40 mm. Length of sliding clamp: 10 mm. Pin diameter: 12 mm.

Selection of the wood screw according to the pin:
- DuoTec 12 - for wood screw ø 5-6 mm or M6 type screw.
- The length of the wood screw should always be at least slightly longer than that of the pin. This In this case, the length depends on the overall situation, the plasterboard and the fixing The combined thickness of the plasterboard and the fittings should not exceed 110 mm.

Barcode: 4048962299847
