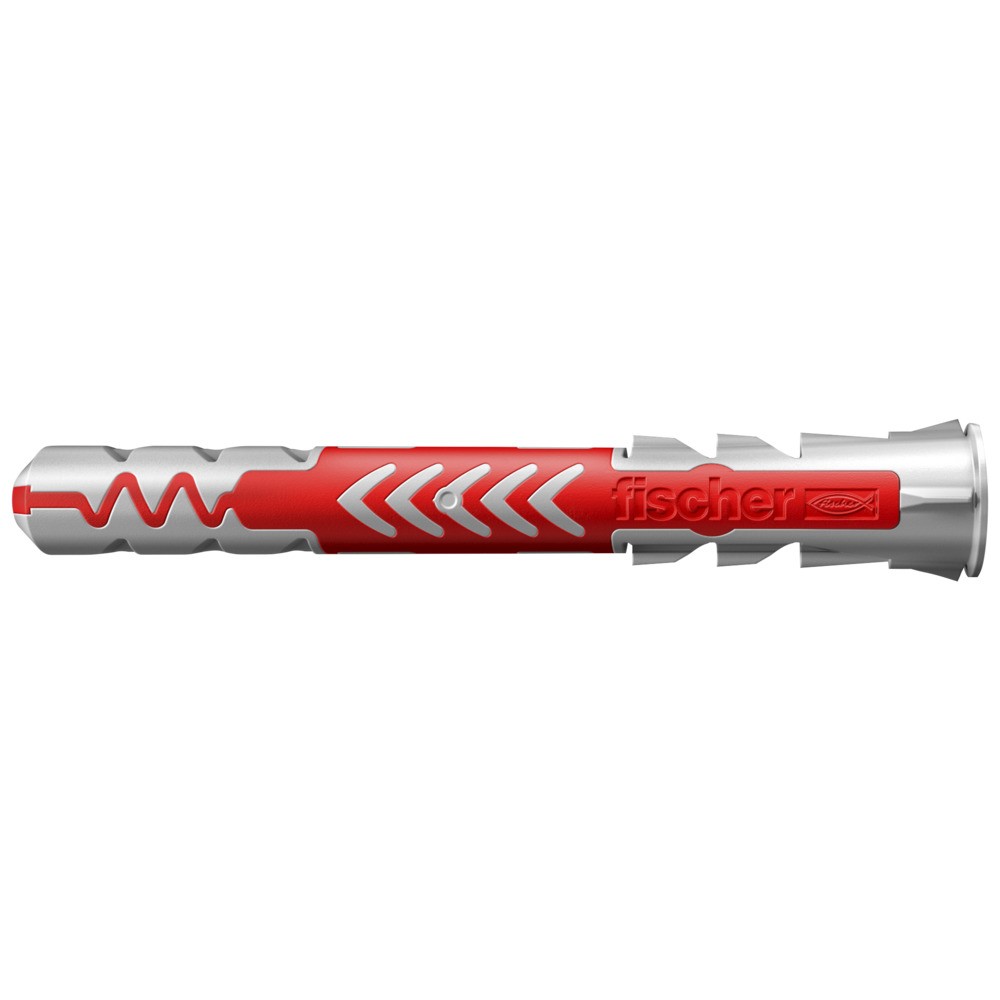

DUOPOWER 10x80 DIY 25 pcs.
Fischer two-component nylon, made with the latest technology
pin - DUO POWER 2K TECHNOLOGY. The pins are versatile due to their two-component structure, the expansion of the pin has several functional abilities (expanding, splitting, twisting/crushing) - thus adapting to the stifling
concrete, stone, blocks, plasterboard and other panels, porous and cellular materials. Pins 6, 8, 10 have extended positions for difficult areas.
Selection of the wood screw according to the pin:
- Pin ø 4 mm - for wood screws ø 2-3 mm.
- Pin ø 5 mm for wood screw ø 3-4 mm.
- Pin ø 6 mm for wood screw ø 4-5 mm.
- Pin ø 8 mm - for wood screw ø 4,5-6 mm.
- Pin ø 10 mm for wood screw ø 6-8 mm.
- Pin ø 12 mm for wood screw ø 8-10 mm.
- Pin ø 14 mm for wood screw ø 10-12 mm.
- Pin ø 16 mm for wood screw ø 12 mm.
- The length of the wood screw should always be at least slightly longer than that of the dowel.
| Manufacturer: Fischer |
| Fastener diameter, mm: 10 |
| Fastener length, mm: 80 |
| Fastener type: Pin |
| Purpose of the fastener: Concrete, Ceramic blocks, Silicate bricks, Ceramic concrete blocks, Gas silicate (cellular concrete) blocks, Wood panels, Plasterboard panels, Ceramic bricks |
| Bortel: With kerb |
Barcode:
4048962262193
